How I positioned the tileset in my tech demo

In the earlier tech demo, I had positioned a truckload of similar tilesets. Those bluish/greyish square blocks are not hand picked. I did not make that work in the level editor. I got inspired by the Smart Tile Objects tutorial by HeartBeast.

I simply downloaded the Square Blocks Textures from OpenGameArt.org, cut and pasted a bit in Paint.net to adapt it to my needs, and imported the end result as a background in GameMaker Studio.

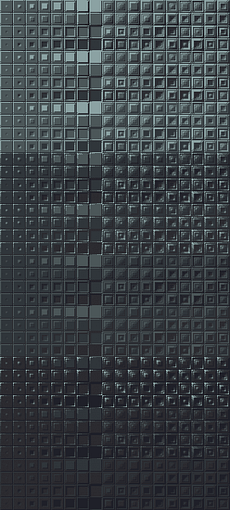

My background version. Easier to import in GameMaker Studio.
My background version. Easier to import in GameMaker Studio.

I made so that when the floor/wall object (which is invisible) is created, it places random tile from that background into the level. Covering the same surface the object covers.

This makes for a pretty quick and dirty way to test a level with low object counts. Also gives me a little “randomized” effect every time I start the level.

What if I don’t want all that randomness? It’s as easy as using random_set_seed(1)

So, here is the create event of the smart object.

tile_fill_object(id, bg_blocks_16, 16, false)

And here is the tile_fill_object script

///tile_fill_obj(obj, tile, tile_size, randomize_tiles)

var obj         = argument[0]
var tile        = argument[1]
var tile_size   = argument[2]
var rand        = argument[3]

var col_num = background_get_width(tile) div tile_size
var row_num = background_get_height(tile) div tile_size

if !rand
{
    random_set_seed(1)
}

for (var row = 0; row < obj.image_yscale; row += 1)
{
    for (var col = 0; col < obj.image_xscale; col += 1)
    {
        var col_index = irandom(col_num - 1)
        var row_index = irandom(row_num - 1)

        tile_add(tile, col_index * tile_size, row_index * tile_size, tile_size, tile_size, obj.x + (col * tile_size), obj.y + (row * tile_size), obj.depth)
    }
}

This is how it looks in the level editor

Level editor with few big Smart Tile Objects
Level editor with few big Smart Tile Objects

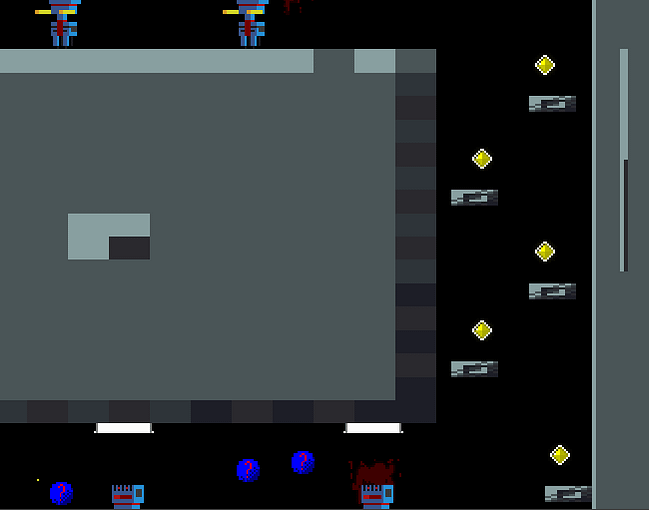

While this is how it looks in the game

Same few big smart tiles objects. But with randomized tiles.
Same few big smart tiles objects. But with randomized tiles.

What are your thoughts on this?
